A Diff Viewer You Can Drag Onto a Page

“Show the user what changed” is one of those deceptively simple requirements. An approval flow wants to show the before and after of a document. An AI-review app wants to highlight what the model rewrote. A config tool wants to preview an edit before it’s applied. Until now, building that in Flow-Like meant hand-rolling a component. Now it’s a element you drag onto the canvas.

Say hello to diffView.

One element, five kinds of content

diffView takes two strings — an original and a modified — and renders a rich, readable diff between them. It handles more than plain text:

• text — a straight line-by-line diff
• code — with syntax highlighting via shiki
• markdown — diff the source, or render both sides and diff the prose
• json — pretty-printed and then diffed, so formatting noise doesn’t drown the real change
• document — when both sides are URLs, show them side-by-side in sandboxed iframes

You don’t have to pick, either. Leave kind on auto and the component figures it out: two URLs become a document view, a set language becomes code, two parseable JSON blobs become a JSON diff, and everything else falls back to text.

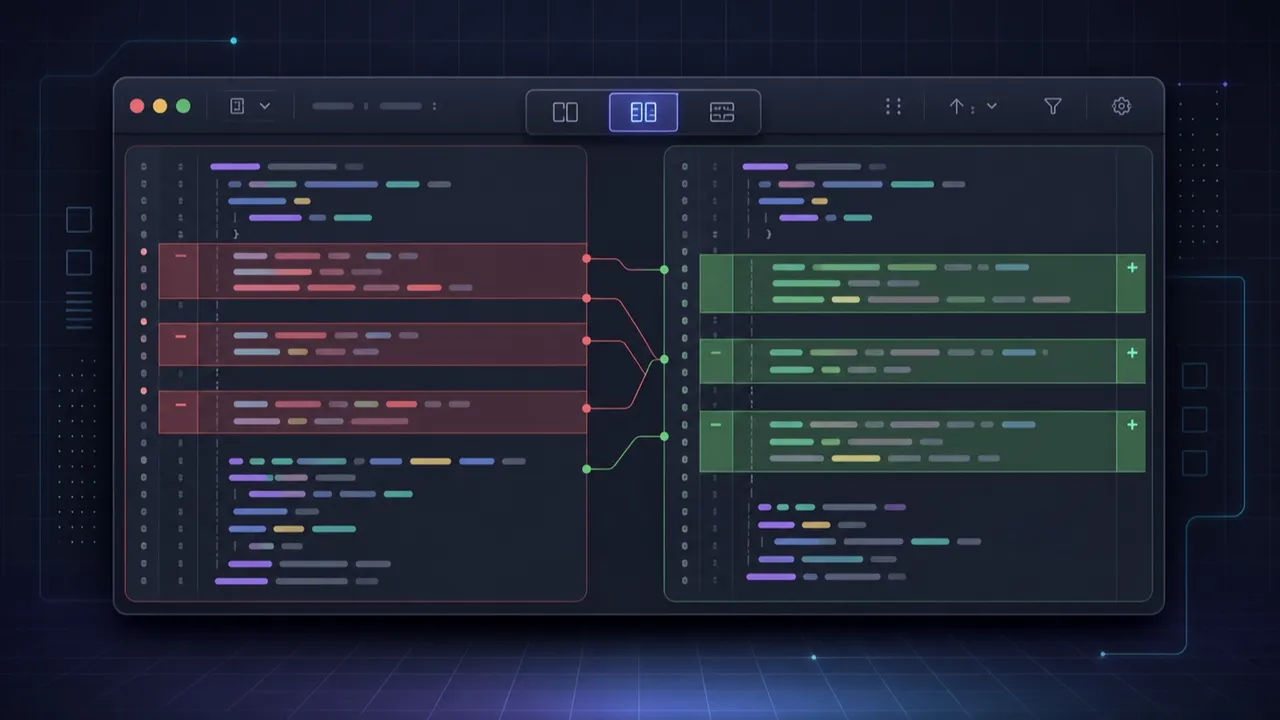

There are three layouts — split, unified, and inline — and the viewer ships a little toolbar so end users can flip between them live, toggle word-wrap, and collapse the unchanged regions to just a few lines of context. Changed words inside a line are highlighted, not just changed lines: additions glow green, deletions red, right down to the token.

Drop it in, or drive it from a flow

Because it’s a first-class A2UI element, diffView shows up in the component palette (look for the “Diff View” entry) with sensible defaults, and FlowPilot knows about it too — ask the AI builder for a diff and it can emit one for you.

To update a diff at runtime, there’s a matching catalog node, Set Diff Content. Wire your original and modified strings into it, point it at the element, and it pushes both in a single update:

let update_value = json!({
    "type": "setProps",
    "props": { "original": original, "modified": modified }
});
context.upsert_element(&element_id, update_value).await?;

So a flow can pull the last saved version of a file, generate a new one, and show the user exactly what moved — no custom UI code.

The details that make it trustworthy

A diff viewer is only useful if you trust what it shows, so a couple of the sharper edges got attention:

• Bare filenames stay text. Early on, a string like README.md was treated as a document and loaded into an iframe. Now the “is this a URL?” check requires an explicit protocol or an absolute path (https:, data:, file:, storage:, /…), so README.md diffs as text like you’d expect, and only real URLs open a preview.
• Document previews are sandboxed. The side-by-side URL view runs each side in a sandboxed iframe, so an untrusted document can’t reach into your app.
• No pathological slowdowns. Syntax highlighting is skipped above 200,000 characters, and the whitespace-trimming pass was rewritten as a plain linear scan to avoid the classic regex blow-up on huge inputs.

It’s built on the well-worn diff library plus a custom renderer, so it’s fast and predictable rather than a heavyweight editor embed. Small element, big quality-of-life upgrade — go find it in the builder.
